PRODUCT DESCRIPTION：
Golden Samurai TD series industrial frequency online UPS adopts advanced full DSP digital control The system technology has realized the leap from analog to digital. Often appear in harsh environments Power outage, mains voltage is too high or too low, the voltage drops instantaneously, or the amplitude is reduced Oscillation, high voltage pulse, voltage fluctuation, surge voltage, spectral wave distortion, clutter interference, frequency Rate fluctuations and other conditions can provide reliable power supply protection, combined with the mature technology of high-frequency machines
APPLICATION FIELD :
Harsh environments such as medical equipment, industrial equipment, large and medium-sized data centers, and network management enterprise server rooms.
FEATURES :
Advanced DSP digital control technology
The use of advanced fully digital DSP control technology makes data processing more accurate and rapid, and the output performance will be more excellent.
High machine reliability.
Large LCD+LED display screen
Fully considered humanized design, perfect combination of LCD+LED, Chinese and American display, rich and easy-to-understand display content, easy operation
Poop. The LCD display panel does not have a switch protection device to avoid various problems caused by collision or mispressing, so that users can use
The process is safer and more reliable.
Highly guaranteed dual AC power input function
Two sets of input from different power grids can be used for the main AC input power supply and the bypass AC input power supply, so that the user’s
The power supply has been more comprehensively guaranteed.
Frequency and phase sequence adaptive system
The output frequency can be set to 50Hz or 60Hz according to the mains frequency. The output phase sequence can be automatically tracked according to the input phase sequence
Phase lock.
Intelligent charging system
The user can freely set the appropriate charging level on the LCD control panel according to the battery type, capacity and battery usage status.
Stream (1-25A). The scientific charging method has fully extended the service life of the battery.
More excellent electrical performance
The efficiency of the whole machine is as high as 93%-94%, and the ECO mode is also provided, which increases the efficiency to more than 97%, which greatly reduces
UPS power loss division. The full-bridge topology with output isolation transformer is adopted, which has stronger load capacity and impact resistance. Output load
The power solid number reaches 0.8,
Parallel function
Support multiple UPS parallel redundancy (option).
1. Advanced DSP digital control technology
Adopt advanced digital control technology to improve the stability and reliability of the machine. The ECO function maximizes the cost savings for customers.

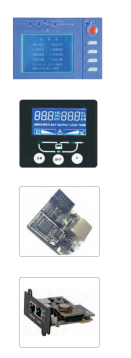

2. Large-screen LCD+LED display in Chinese and English
Perfect combination, display in Chinese and English, can display content such as input, output, battery voltage, load status, current, UPS working status and mode, temperature, model manufacturer number. The main parameters of the machine such as voltage, frequency, current, etc. can be set directly through the LCD display
3. Dual AC power input
The main AC input power supply and the bypass AC input power supply can use two sets of inputs from different power grids. LCD+LED
4. Generator mode
Support generator input
5. Parallel function
8 UPSs are connected in parallel for redundancy.
6. Strong load capacity
The full-bridge topology with output isolation transformer is adopted, which has stronger load capacity and impact resistance. And optional bypass output isolation transformer.
7. Full-bridge inverter architecture:
UPS adopts advanced DSP design, three-phase independent full-bridge inverter system design, its output voltage and phase are completely unaffected by three-phase unbalanced load, and can withstand 100% unbalanced load.
8. The charging current can be set
The user can freely set the appropriate charging current (1~50A) on the LCD according to the battery capacity. When the UPS is running at full load, the maximum charging current is 50A.
9. Battery management function
It mainly includes routine functions such as battery failure detection, low battery, and battery loss.
10. Frequency and phase sequence adaptive system
50Hz or 60Hz;
The output phase sequence can be automatically tracked and locked according to the input phase sequence.
11. Protection and alarm functions
LCD, output contacts, etc. prompt in time, self-diagnosis function when starting up; with overload protection, output short circuit, input overvoltage, lightning protection function, battery reverse connection and other protection functions.
12. Powerful panel setting function
Output voltage: 200/208/220/230/240Vac (phase voltage)
Output frequency: 50Hz/60Hz
Charging current: 1~50A
Battery discharge time
Timing boot
Shutdown timer
Working mode: ECO, EPO
LCD Chinese and English setting input frequency: 40~70Hz
It has a variety of alarm methods, which can be automatically set according to the frequency of the mains by sound, light, and output frequency.
13. EPO emergency shutdown function
Through the "Emergency Stop" button, the rectifier and inverter can be turned off, and the output (including bypass and inverter) can be blocked. This button can be used when an emergency occurs or the shutdown cannot be performed normally.
14. Host monitoring and alarm function
15. Smart slot expandability function (optional)
You can choose USB card, AS400 card, CMC monitoring card, SNMP card, RS485 card, EMD environmental monitoring card.
The UPS is equipped with an SNMP slot to realize the UPS remote monitoring function, with functions such as automatic alarm, UPS operating status and fault prediction and diagnosis, and operating time control.
Output RS-232 and RELAY signals for computer system connection, support Windows 95/98/2000 / NT / ME / XP, NOVELL / SNMP / ASMP /LINUX and other software?
